Single chainring equipped entry-level 29er aluminium hardtail.
Single chainring equipped entry-level 29er aluminium hardtail.
Merida

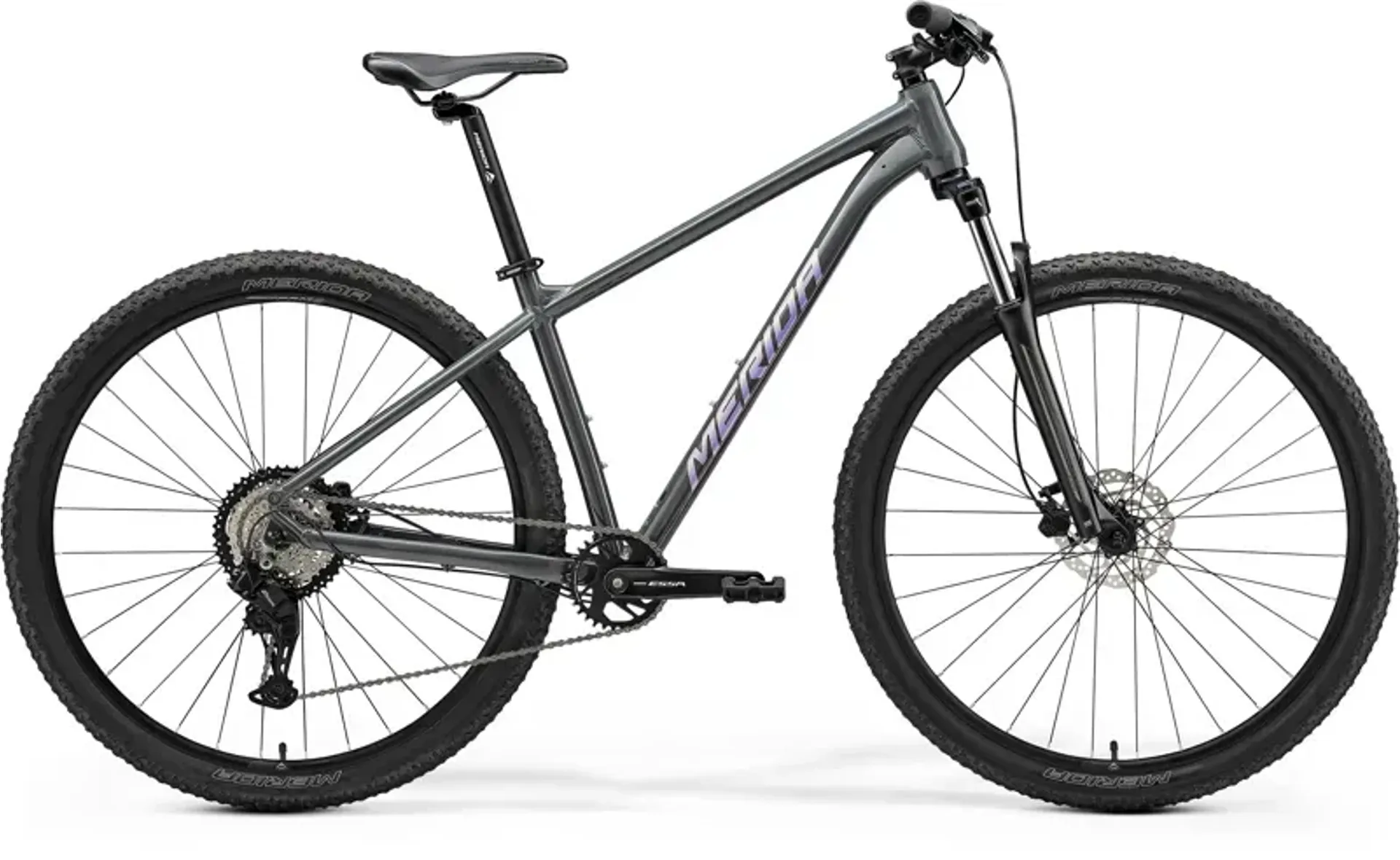

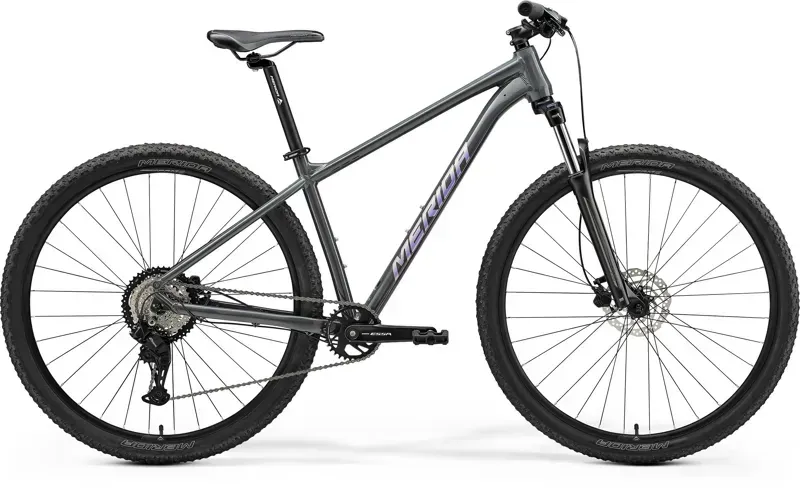

Merida Big Nine 20 Mountain Bike In Dark Grey/Purple

£700.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to return an item, please contact us first and we will generate a returns number (GRN.) You have 14 days from the day of delivery to request the GRN, anything outside of 14 days is at our discretion on a case by case basis and may incur a re-stocking fee. If the item being returned is found to be faulty we will refund you the initial order carriage cost, and then offer you a full refund or replacement. We will also refund you the carriage cost to return it to us. If it is not faulty, we will offer you a refund or replacement, but not the initial order carriage cost or the cost to return it.

Merida Big Nine 20 Mountain Bike In Dark Grey/Purple

Season:2025

Brand:Merida

Code:P-Q420

Single chainring equipped entry-level 29er aluminium hardtail.

The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts.

The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Classic hardtails are the backbone of the range and showcase the enormous wealth of experience and knowledge gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolizes.

Features:

  • Double butted aluminium frame with 29er wheels.
  • Less aggressive and more upright geometry for maximum control and comfort.
  • SR Suntour 100 mm travel suspension fork with lockout.
  • Shimano 8-speed drivetrain with single chainring setup.
  • Tektro hydraulic disc brakes.
  • Internal cable routing.
Technical Information
  • Frame
    TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25
  • Fork
    SR Suntour XCT30 HLO; Coil; 100mm travel; lockout; Max tyre size 29 x 2.25
  • Headset
    Merida M2345
  • Stem
    Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
  • Handlebar
    Merida CC; aluminium; 690mm wide; 15mm rise
  • Grip
    Merida EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Tektro M275
  • Brake Calipers
    Front: Tektro HD-M275; hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Tektro HD-M275; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
  • Tyres
    Front: Merida K1080; 29 x 2.2; wire bead Rear: Merida K1080; 29 x 2.2; wire bead
  • Wheel Size
    29
  • Wheels
    Rims: Merida CC; 17mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano TX505; 100 x 9mm; 32 spoke; Centerlock Rear Hub: Shimano TX505; 135 x 9mm; 32 spoke; Centerlock
  • Speeds
    8
  • Rear Derailleur
    Shimano ESSA RD-U2000-8; GS
  • Shift Levers
    Shimano ESSA SL-315-8
  • Chain
    KMC Z8.3
  • Cassette
    Shimano CS-HG400-8; 11-45 teeth; 8 speed
  • Chainset
    Shimano ESSA FC-U2001 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
  • Bottom Bracket
    Shimano BB-UN101 73-123
  • Pedals
    VP VPE-891
  • Saddle
    Merida Sport comfort
  • Seat Post
    Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
