The new eOne-Forty has a big range in every sense.
The new eOne-Forty has a big range in every sense.
Merida

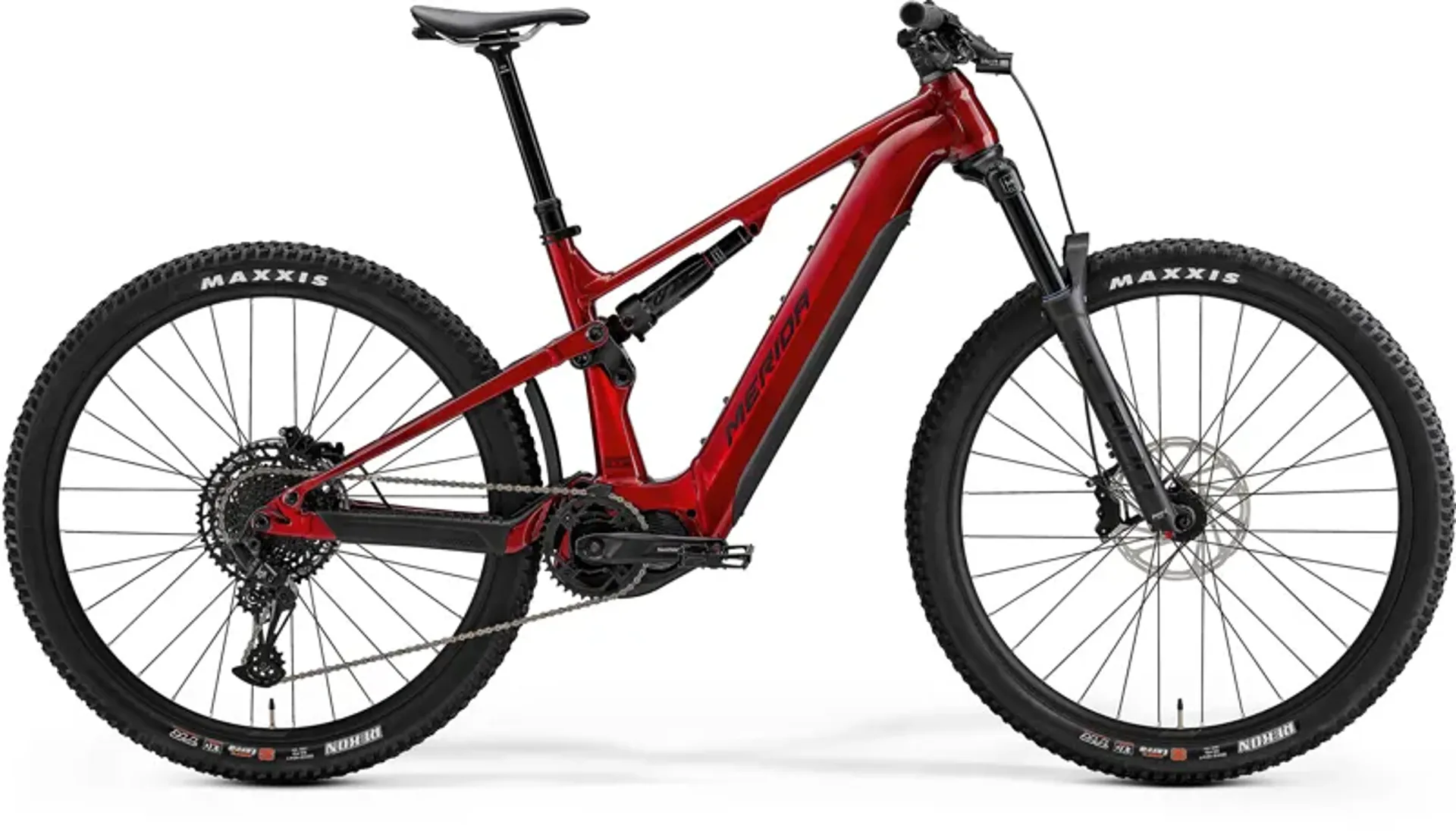

Merida eOne-Forty 675 Electric Mountain Bike In Red/Black

£5,200.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to return an item, please contact us first and we will generate a returns number (GRN.) You have 14 days from the day of delivery to request the GRN, anything outside of 14 days is at our discretion on a case by case basis and may incur a re-stocking fee. If the item being returned is found to be faulty we will refund you the initial order carriage cost, and then offer you a full refund or replacement. We will also refund you the carriage cost to return it to us. If it is not faulty, we will offer you a refund or replacement, but not the initial order carriage cost or the cost to return it.

Merida eOne-Forty 675 Electric Mountain Bike In Red/Black

Season:2024

Brand:Merida

Code:P-P995

The new eOne-Forty has a big range in every sense.

It's highly versatile, from the trail to the commute, and the impressive 750 wh battery can be boosted with a 360 wh range extender that's available separately. The suspension platform and geometry has been influenced by previous generation ebikes and our award-winning trail and enduro range so it has peerless off-road performance and handling that's confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front. Simplified agilometer sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility

Features:
  • Durable LITE aluminium frame with 143 mm rear wheel travel
  • Suntour Aion fork with 150 mm travel and RockShox Deluxe rear shock
  • SRAM NX Eagle 12-speed, wide-range drivetrain
  • User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
  • Full 29" with option to run mixed 'mullet' wheel sizes
  • Low standover height and long travel dropper posts on all sizes
Technical Information
  • Frame
    Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8
  • Rear Shock
    RockShox Super Deluxe Select
  • Fork
    Suntour AION 36X-Boost; 150mm travel; Tapered, 44mm fork offset
  • Headset
    Acros ICR Merida external neck w/ Blocklock
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    SRAM DB8
  • Brake Calipers
    Front: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor Rear: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
  • Tyres
    Front: Maxxis Rekon; 29 x 2.4; Kevlar bead, folding; 3C EXO MaxxTerra Rear: Maxxis Rekon; 29 x 2.4; Kevlar bead, folding; TR 3C EXO MaxxTerra
  • Wheel Size
    29
  • Wheels
    Rims: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29 Spokes: Black stainless Front Hub: Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt Rear Hub: Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
  • Speeds
    12
  • Front Derailleur
  • Rear Derailleur
    SRAM NX Eagle
  • Shift Levers
    Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
  • Chain
    SRAM SX Eagle
  • Cassette
    SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
  • Chainset
    FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components - VPE-527
  • Saddle
    Merida Expert SL with V-mount; including Merida minitool
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
  • Motor
    Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP801; 85Nm
  • Battery Capacity
    750Wh
  • eBike Display
    Shimano SC-EN600
Sizing Information
