The Disc Trucker is a pure-bred drop bar touring bike suitable for traveling anywhere in the world on mostly paved roads
The Disc Trucker is a pure-bred drop bar touring bike suitable for traveling anywhere in the world on mostly paved roads
Surly - Bikes/Frames

Surly Disc Trucker 700c Frameset - Green

£899.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to return an item, please contact us first and we will generate a returns number (GRN.) You have 14 days from the day of delivery to request the GRN, anything outside of 14 days is at our discretion on a case by case basis and may incur a re-stocking fee. If the item being returned is found to be faulty we will refund you the initial order carriage cost, and then offer you a full refund or replacement. We will also refund you the carriage cost to return it to us. If it is not faulty, we will offer you a refund or replacement, but not the initial order carriage cost or the cost to return it.

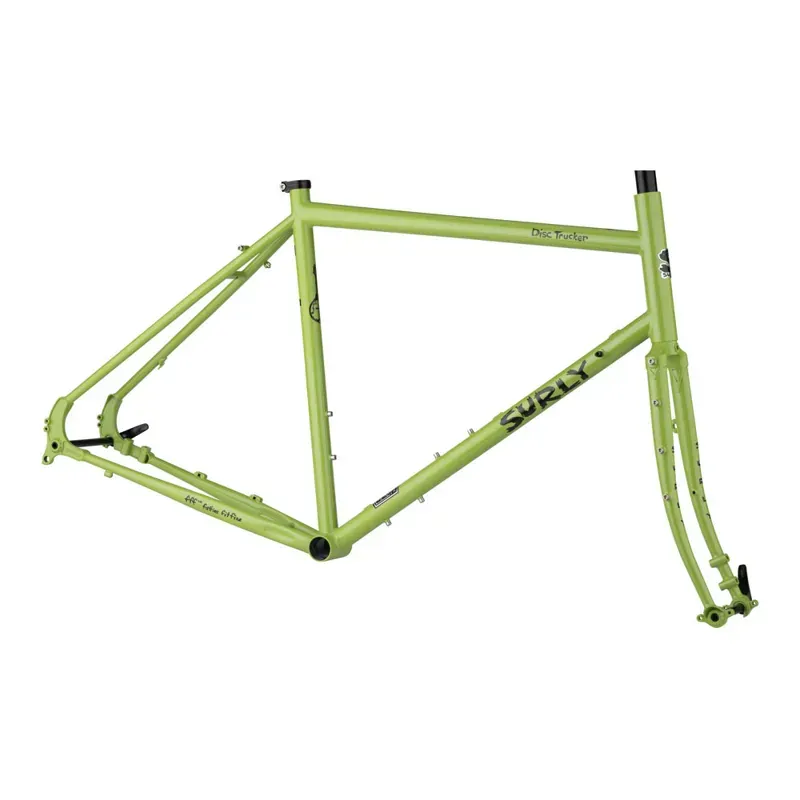

Surly Disc Trucker 700c Frameset - Green

Season:2021

Brand:Surly - Bikes/Frames

Code:fmsu-21-disctrk-fm-gn

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there

Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

Features:

  • Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
  • 12mm thru-axles for a stiffer feel and increased stability when fully loaded
  • Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
  • Flat-mount disc brakes
  • Frame sizes 42–56cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
  • Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders
Technical Information
  • Colour
    Pea Lime Soup
  • Frame Construction
    4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction
    4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
  • Rear Dropout Configuration
    Vertical
  • Rear Hub Spacing
    12x142 (Axle included)
  • Rear Axle Size
    Ø12 x 162, TP=1.5, TL=12
  • Front Hub Spacing
    12x100 (Axle included)
  • Front Axle Size
    Ø12 x 118.5, TP=1.5, TL=12
  • Rear Brake
    Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
  • Front Brake
    Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
  • Head Tube
    Ø34mm
  • Steerer Tube
    Ø28.6mm (1-1/8")
  • Crown Race
    Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.)
    EC34/28.6
  • Stock Headset Lower (S.H.I.S.)
    EC34/30
  • Seat Collar
    Ø30mm
  • Seatpost
    Ø27.2mm
  • Front Derailleur (Clamp)
    Bottom-pull (Ø28.6mm)
  • Max Chainring (CL)[3]
    1x (Road): 47T
    2x (Road): 34/50T
    3x (Road): 33/47/56T
  • Bottom Bracket
    68mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame [1]/[2]
    26in: 26 x 2.1" (with or without fenders)
    700c: 700c x 47mm (with or without fenders)
  • Tire Clearance Fork [1]
    26in: 26 x 2.0" (with or without fenders)
    700c: 700c x 50mm (with or without fenders)
    700c: 29 x 2.0" (with or without fenders)
  • Rigid Fork Spec
    26in: 376 x 45mm
    700c: 390 x 45mm
  • Bottle Mounts Frame
    3 Standard
  • Bottle Mounts Fork
    2 Three-Pack
  • Rack Mounts Frame
    Yes (upper and lower threaded)
  • Rack Mounts Fork
    Yes (upper, lower, and mid-blade threaded)
  • Fender Mounts Frame
    Yes
  • Fender Mounts Fork
    Yes
  • Other Features
    Seatstay mounted spoke holder
    Downtube mounted shifter bosses
    Surly removable kickstand plate included with complete bikes
    Uses rear flat mount standard for front brake
