A steel utility vehicle designed for fully-loaded exploration,whether across town or across the country.
A steel utility vehicle designed for fully-loaded exploration,whether across town or across the country.
Surly - Bikes/Frames

Surly Ogre 29' ' Frameset in Purple

£849.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to return an item, please contact us first and we will generate a returns number (GRN.) You have 14 days from the day of delivery to request the GRN, anything outside of 14 days is at our discretion on a case by case basis and may incur a re-stocking fee. If the item being returned is found to be faulty we will refund you the initial order carriage cost, and then offer you a full refund or replacement. We will also refund you the carriage cost to return it to us. If it is not faulty, we will offer you a refund or replacement, but not the initial order carriage cost or the cost to return it.

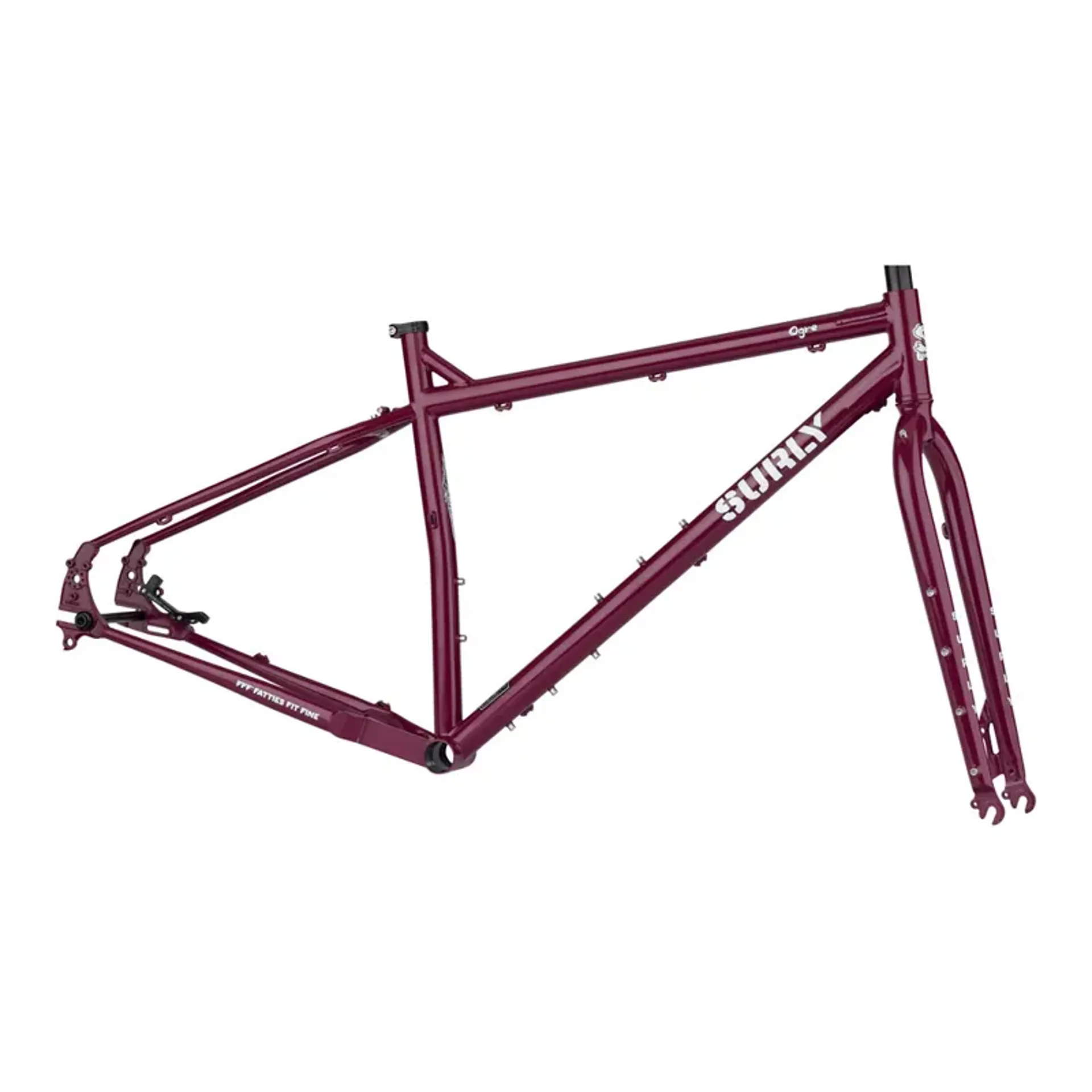

Surly Ogre 29' ' Frameset in Purple

Season:2024

Brand:Surly - Bikes/Frames

Code:fmsu-24-ogre-pur

A versatile all-season commuter bike.

If you’re like Surly, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack.

Ogre is designed to be the ultimate steel utility vehicle. It relishes in those “take-the-long-way-home-and-find-some-beverages-along-the-way” sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you don’t even have to go home if you don’t want to.

Features:

  • All the barnacles you could ever possibly ask for including rack and mudguard, multiple three-pack mounts and mid-blade.
  • Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount
  • Clearance for 29” x 2.5” or 27.5" x 2.8" tyres with fenders
Technical Information
  • Frame Construction
    4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction
    4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Rear Dropout Configuration
    Horizontal slotted with optional vertical dumpout
  • Rear Hub Spacing
    Gnot-Boost 145mm
    12 x 142mm or 12 x 148mm (axle included)
    10 x 135mm with Surly 10/12 Adapter Washers (not included)
  • Front Hub Spacing
    10 x 100mm
  • Rear Brake
    Disc - 51mm I.S. (160mm max rotor)[5]
    Rim - Canti (removable posts)"
  • Front Brake
    Disc - 51mm I.S. (203mm max rotor)
  • Head Tube
    Ø34mm
  • Steerer Tube
    Ø28.6mm (1-1/8")
  • Crown Race
    Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.)
    EC34/28.6
  • Stock Headset Lower (S.H.I.S.)
    EC34/30
  • Seat Collar
    Ø30mm
  • Seatpost
    Ø27.2mm
  • Front Derailleur (Clamp)[3]
    High direct mount top-pull (Ø31.8mm)
    26mm offset adapter (not included) for 142 or 135mm rear hub spacing
    29mm offset adapter (not included) for 148mm rear hub spacing
  • Max Chainring (CL)
    1x (Mtn): 42T
    2x (Mtn): 34/46T
    3x (Mtn): 24/36/48T
    1x (Boost): 46T
    2x (Boost): 42/48T
  • Bottom Bracket
    73mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame[1]/[2]
    27.5 x 3.0” (27.5 x 2.8" with fenders)
    29 x 2.6" (29 x 2.5" with fenders)
  • Tire Clearance Fork [1]
    27.5 x 3.0" (w/o fenders) 27.5 x 2.8" (w/ fenders)
    29 x 2.6" (w/o fenders) 29 x 2.5" (w/ fenders)
  • Rigid Fork Spec
    447 x 43mm
  • Max Suspension Fork Length [4]
    N/A
  • Bottle Mounts Frame
    2 Three-Pack (XS)
    1 Standard + 2 Three-Pack (S - XL)
  • Bottle Mounts Fork
    4 Three-Pack
  • Rack Mounts Frame
    Yes (upper and lower threaded)
  • Rack Mounts Fork
    Yes (upper, lower, and mid-blade threaded)
  • Fender Mounts Frame
    Yes
  • Fender Mounts Fork
    Yes
  • Other Features
    Dedicated Rohloff cable routing and mount for OEM 2 axle plate
    Dedicated Surly Trailer mounts
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] N/A Non-suspension correct frame.
[5] Rear disc brake requires Surly’s proprietary brake mount adapter.
