Box One top load Stem with Oversized technology
Box One top load Stem with Oversized technology
Box Bmx

BOX BMX Box One Oversized 31.8 X 1-1/8 Top Load Stem

£69.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to return an item, please contact us first and we will generate a returns number (GRN.) You have 14 days from the day of delivery to request the GRN, anything outside of 14 days is at our discretion on a case by case basis and may incur a re-stocking fee. If the item being returned is found to be faulty we will refund you the initial order carriage cost, and then offer you a full refund or replacement. We will also refund you the carriage cost to return it to us. If it is not faulty, we will offer you a refund or replacement, but not the initial order carriage cost or the cost to return it.

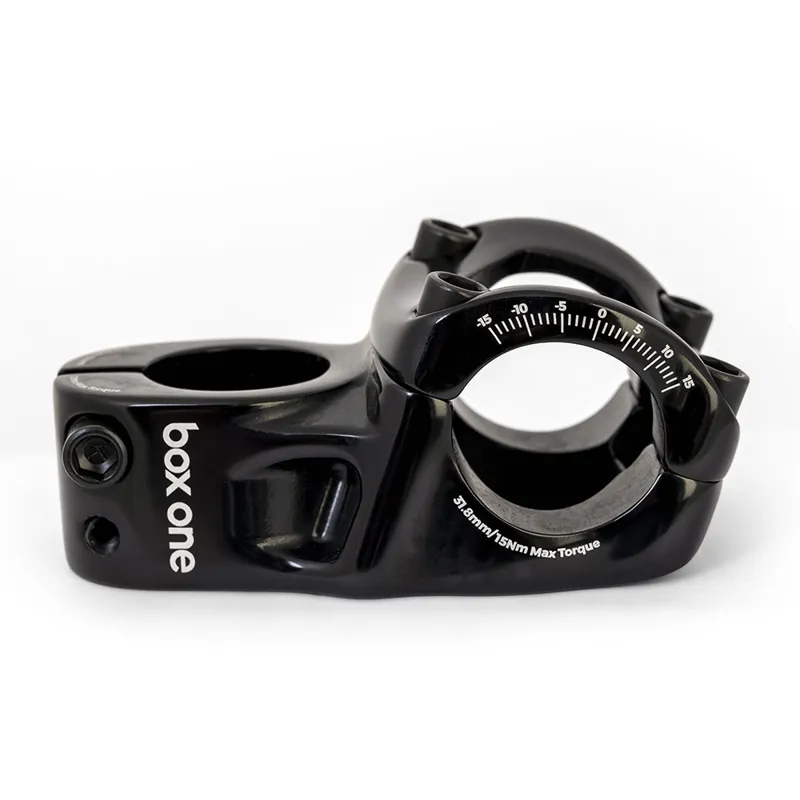

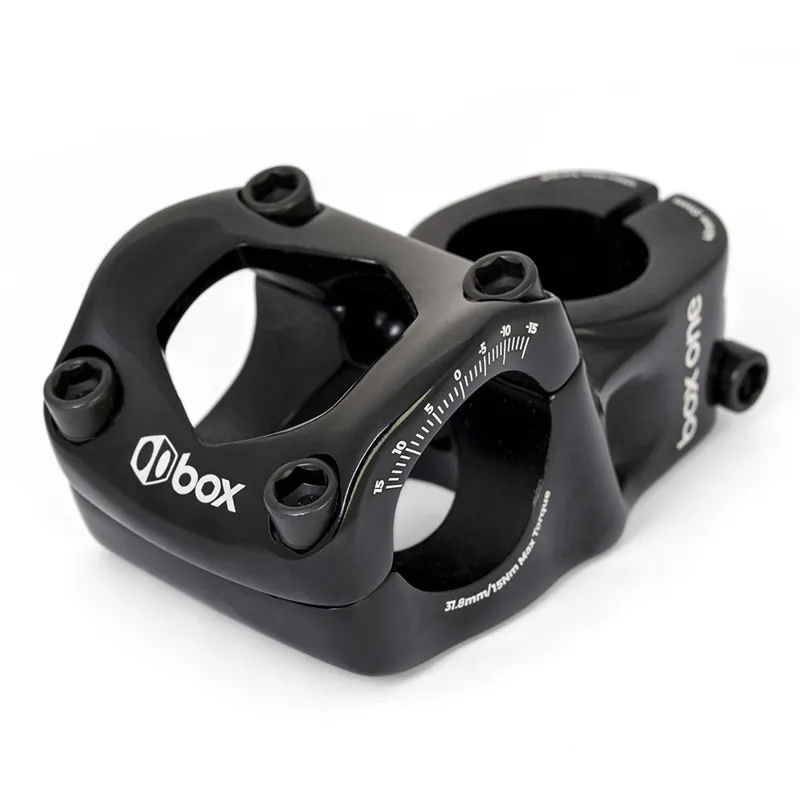

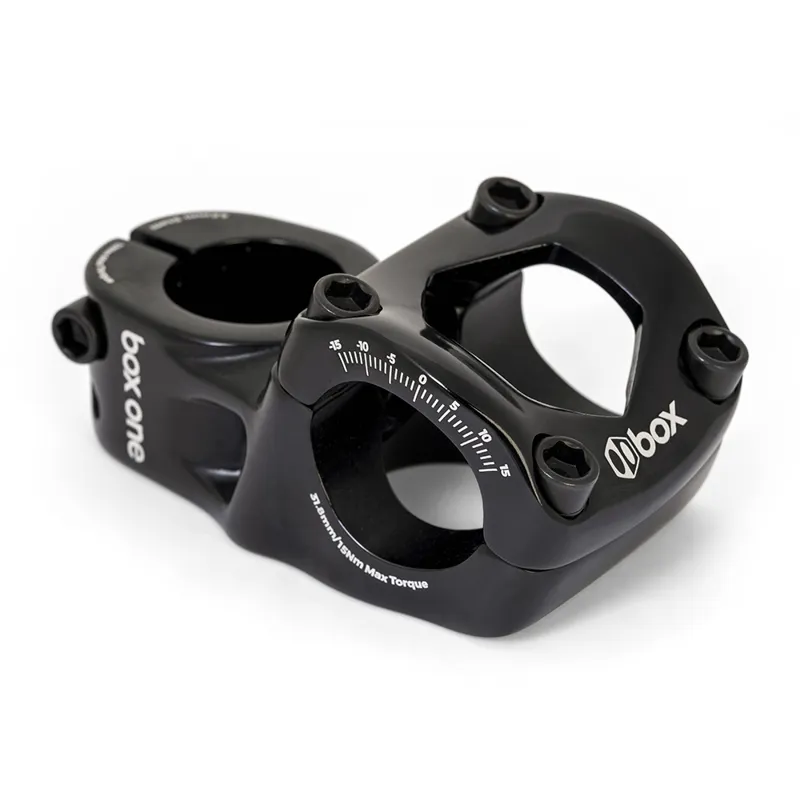

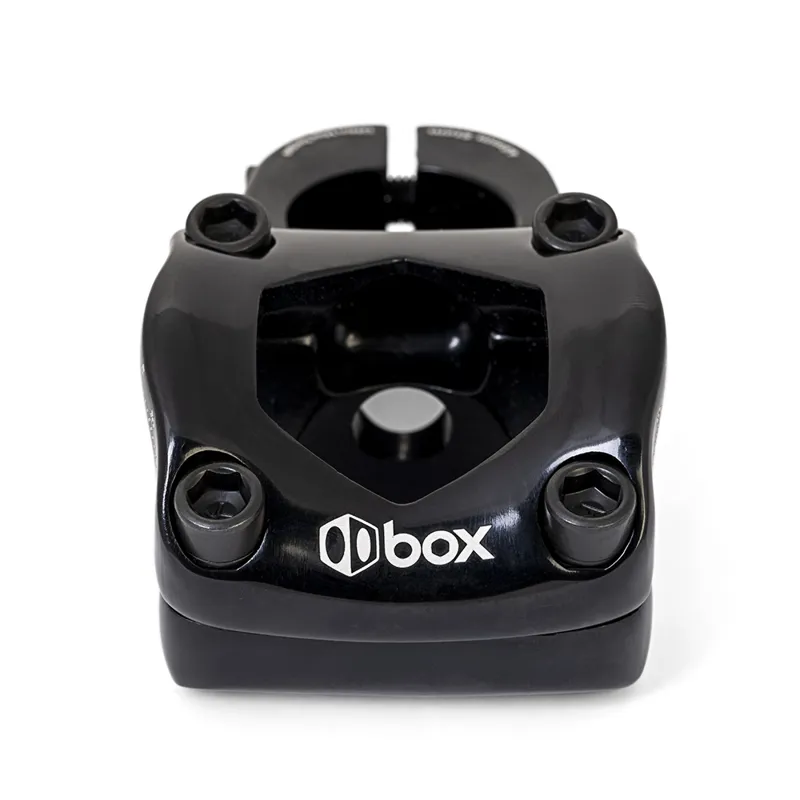

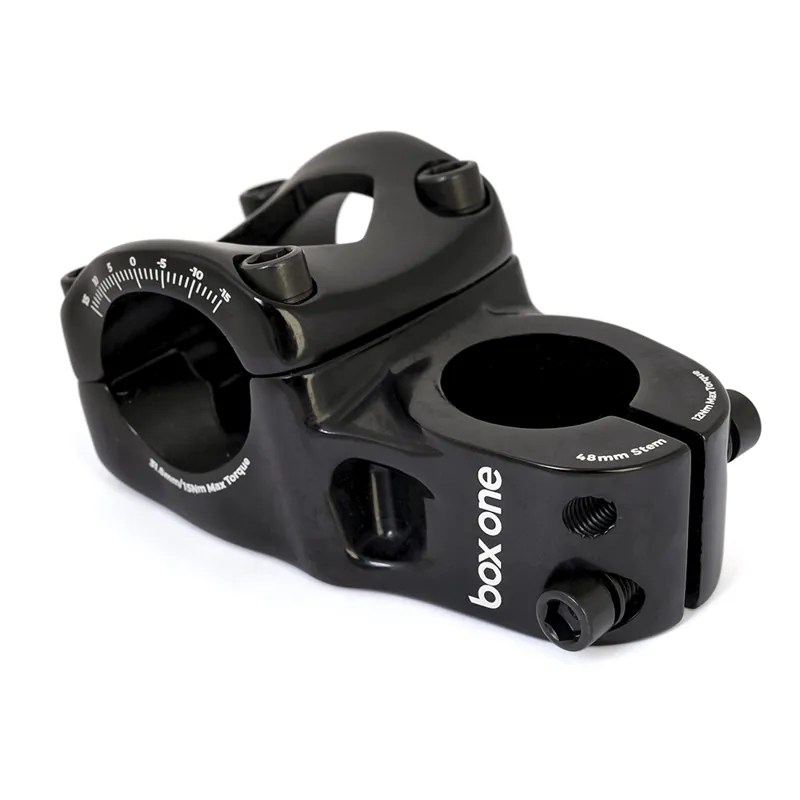

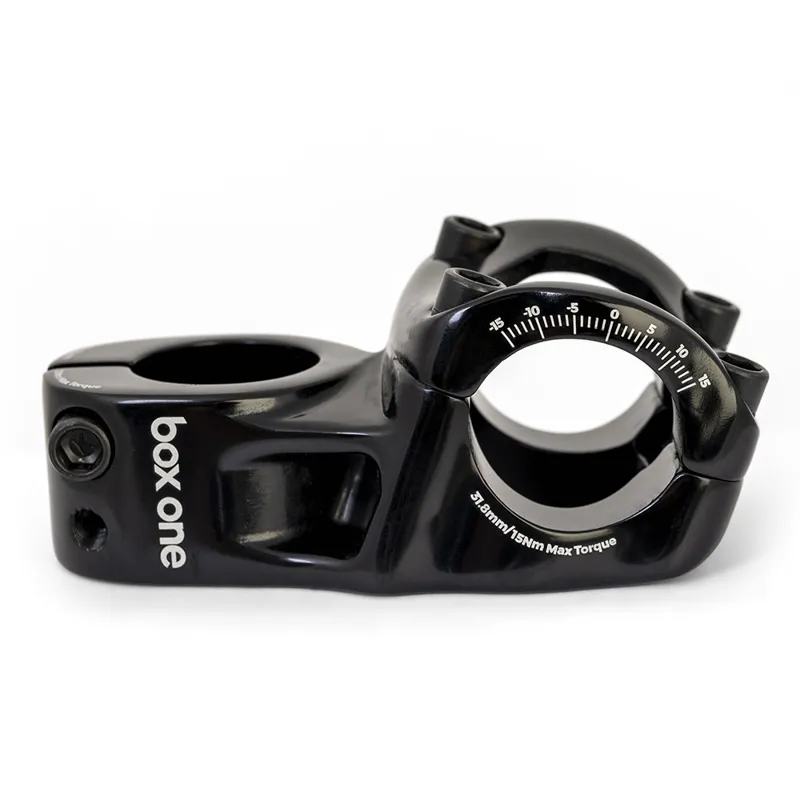

BOX BMX Box One Oversized 31.8 X 1-1/8 Top Load Stem

Brand:Box Bmx

Code:as-bx-one-topload-318

All Box One top load stems are engineered and crafted using Oversized Technology. As we follow the load paths down the handlebars and have focused attention on the stem-to-bar interface.

Since the Oversized handlebars have an increased wall thickness and tube diameter in this sector, we have reciprocated with an augmented stem interface with greater surface area. By moving material from low-stress areas. This has greatly minimised twist and contributed to responsiveness. As the stem is mated with the handlebars, we have contributed to increased pedalling stiffness by providing a backstop to the 'lifting' phenomenon. There is no point pushing hard on your pedals if you can’t pull up on your handlebars and deliver that power. Power can easily be lost to handlebar-to-stem deflection and the consequences can be poor power delivery and steering control. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

This particular model stem not only shifts material from low-stress zones to the Oversized interface but also provides rigidity through the side skirt design. Using a reverse development process for the delta stem, the structure was created from the outside-in vs. the traditional inside-out method. These stems are engineered for larger-sized, stronger racers.

Specifications

  • Material: Cold-Forged 6061-T6 Aluminium
  • Hardware: Chromoly Clamping Bolts
  • Finish: Anodised w/Laser-Etched Graphics
  • Length: 48mm, 53mm
  • Clamp Diameter: 31.8mm
  • Stack Height: 28mm
  • Rise: +/-5 degree
  • Steerer Tube: 1-1/8”
