All Hex Lab rims are engineered to be front and rear specific and crafted using Oversized Technology. Box have carefully studied the load paths from the bars through the stem, headset, fork, axle, hub to the spokes and into the rim for steering stiffness. The same approach was taken via the pedals through the cranks and other components on the way to the rear rim for pedalling stiffness. That extra stiffness will net you more power to the ground out back, and upfront, you'll feel in control. When combined with Box's other Oversized components, you'll experience heightened responsiveness and reduced latency. Due to their compatibility with tubeless and tubed configurations, these rims have a broad range of tire options and setup possibilities, making them perfect for any track.

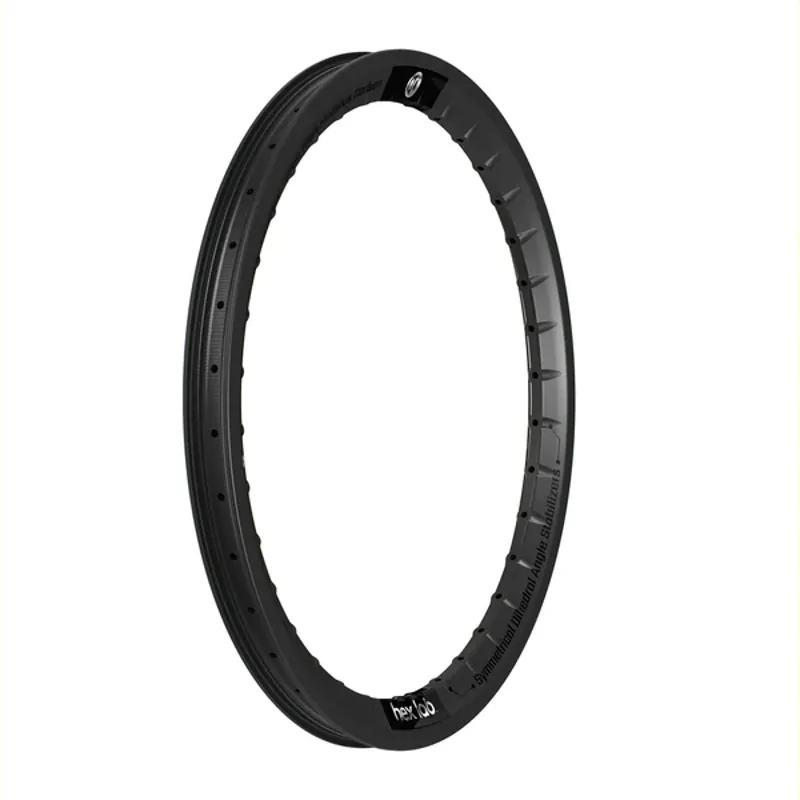

The Hex Lab Carbon BMX Rims are the only rims in the Box line-up to be blessed with Oversized Technology. They are also the only model to use Ultra High Modulus Carbon Fiber (stiffer than other carbons variants). Take notice of the unique Symmetrical Dihedral Angle Stabilizers. Yes, it’s a mouthful but each of those words carries meaning. The sculpted bullet-shaped spoke beds are designed to bridge the angle between the rim's angled flanks and the vertical plane. With that, we achieve the stability, stiffness, and durability of a much broader rim profile without actually taking on most of the extra material.
Features
- Machined Brake Track
- High-Response & Low Latency
- Symmetrical Dihedral Angle Stabilisers
Specification
- Material: Vacuum Mold Ultra High Modulus Carbon Fiber
- Hole Drilling: 36
- Seam: None
- Valve Hole: Presta
- Finish: Matte Black with Foil Stamped Chrome Logos
- Compatibility: Tubeless-Ready
- Front: Disc-only brake profile
- Brake: Rear: Rim or Disc Brake
- Compatible Tyre Size: 24 x 1.50 to 1.95"
- Diameter: 24"
- External Width: 30mm
- Internal Width: 23mm
- ERD: 470mm
- ISO (E.T.R.T.O): 507mm (front and rear)
- Weight: 409g/14.04oz (front and rear)
Note: Hex Lab Carbon BMX Rims with brake tracks require Carbon Brake Pad Inserts and CANNOT be used with standard Brake Pads made for aluminium Rims. Box Carbon BMX hoops are compatible with Box One Carbon Replacement Pads. Use of other brake pads will void warranty.
Recommend spoke tension between 110kg and 115kg; remember, every rim is different.
